Idealista: housing sale in Trieste

The aim of this project is to download all the ads of houses for sale in Trieste from the Idealista website and conduct a preliminary analysis of the data. Moreover, we will create a map with the location of the houses for sale, to get an idea of the distribution of the ads and their prices in the city.

Get the Data

librerie = c(
  "jsonlite",
  "httr", # for the API
  "scales",
  "ggplot2",
  "leaflet", # for the map
  "RColorBrewer", # for the map
  "doParallel",
  "parallel",
  # "reticulate",
  "tidymodels",
  "tidyverse",
  "plotly",
  "randomForest" # for na.roughfix
)

# OLD function
Install_And_Load <- function(packages) {
  k <- packages[!(packages %in% installed.packages()[,"Package"])];
  if(length(k))
  {install.packages(k, repos='https://cran.rstudio.com/');}

  for(package_name in packages)
  {library(package_name,character.only=TRUE, quietly = TRUE);}
}

# pak::pak(librerie)

# the tidyverse functions are used instead of the others in case of same name
# for two functions
# conflicted::conflict_prefer_all("tidyverse")
conflicted::conflict_prefer_all("dplyr")
conflicted::conflict_prefer_all("ggplot2")


Install_And_Load(librerie)

theme_set(theme_minimal())

thematic::thematic_rmd()

To access the idealista APIs we need to obtain the credentials. You can get them by registering on the idealista website.

# parametri in input

# nuove credenziali

consumer_key = readRDS("keys/consumer_key.rds")
consumer_secret = readRDS("keys/consumer_secret.rds")
# saveRDS(consumer_key, file = "keys/consumer_key.rds")
# saveRDS(consumer_secret, file = "keys/consumer_secret.rds")


#Use basic authentication
secret <- jsonlite::base64_enc(paste(consumer_key, consumer_secret, sep = ":"))
req <- httr::POST("https://api.idealista.com/oauth/token",
                  httr::add_headers(
                    #"Authorization" = paste("Basic", gsub("n", "", secret)),
                    "Authorization" = paste("Basic", secret, sep = " "),
                    "Content-Type" =
                      "application/x-www-form-urlencoded;charset=utf-8"
                  ),
                  body = "grant_type=client_credentials"
)

token <- paste("Bearer", httr::content(req)$access_token)

Establish the parameters for the request link. Our goal is to obtain all ads for houses for sale in Trieste. The central point is set to the center of Trieste, with a maximum distance of 10 km. We also require a minimum size of 30 square meters for the ads Establish the parameters for the request link. Our goal is to obtain all ads for houses for sale in Trieste. The central point is set to the center of Trieste, with a maximum distance of 10 km. We also require a minimum size of 30 square meters for the ads to exclude garages.to exclude garages.

#url user parameters
# x = '36.71145256718129' For Malaga
# y = '-4.4288958904720355'
x = '45.643170'
y = '13.790524'
maxItems = '10000'
distance = '10000'
type = 'homes'
op = 'sale'
minprice = '30001'
maxprice = '200000000'
minsize = '30'
maxsize = '10000'


#url fixed parameters
# site = 'https://api.idealista.com/3.5/es/search?' For Spain
site = 'https://api.idealista.com/3.5/it/search?'
loc = 'center='
# country = '&country=es'
country = '&country=it'
maxitems = '&maxItems=50'
pages = '&numPage='
dist = '&distance='
property = '&propertyType='
operation = '&operation='
pricefrom = '&minPrice='
priceto = '&maxPrice='
misize = '&minSize='
masize = '&maxSize='
chalet = '&chalet=0'

Now, we will send the request to Idealista. We have a monthly limit of 100(pagina = 100) for requests and one for second (Sys.sleep(1)). Each request is different only by the result page’s index.

Once the data are downloaded and extracted from JSON, we’ll get the lists that have to extract and put in a dataset. The problem araises becuase inside the lists are present other lists nested and not for each ad but only for someone. So that we create an empty matrix with the unique items number for ads as columns and the number of rows equal to the number of ads.

pagina = 100

for(z in 1:pagina)
{
  print(z)

  # prepara l'url
  url <- paste0(site, loc, x, ',', y, country, maxitems, pages, z, dist, distance,
               property, type, operation, op, pricefrom, minprice, priceto, maxprice,
               misize, minsize, masize, maxsize)

  # invia la richiesta a idealista
  res <- httr::POST(url, httr::add_headers("Authorization" = token))

  # estrai il contenuto dal JSON
  cont_raw <- httr::content(res)

  # stop the cycle if there are no more results
  if(length(cont_raw[[1]]) == 0) break

    # NUOVO: Prendo i nomi delle colonne da tutte le liste e li unisco
  map(
    1:length(cont_raw[[1]]),
    function(x) {
      # the if is necessary because the list can be empty in the last page
      if(length(cont_raw[[1]][[x]]) == 0) return(NULL)
      return(names(cont_raw[[1]][[x]]))
    }
  ) |>
    unlist() |>
    unique() -> colNames

  # Creo una matrice vuota dove imagazzinare i valori
  m = matrix(NA, nrow = length(cont_raw[[1]]), ncol = length(colNames))
  colnames(m) = colNames
  for(r in 1:length(cont_raw[[1]]))
  {
    for(c in 1:length(cont_raw[[1]][[r]]))
    {
      # nel caso l'elemento della lista sia una sotto lista o df vado a
      # spacchettarlo aggiungendo colonne
      if(length(cont_raw[[1]][[r]][[c]])>1)
      {
        # non si può fare in un unico caso
        for(i in 1:length(cont_raw[[1]][[r]][[c]]))
        {
          # se la colonna della sottolista non è già stata aggiunta lo faccio
          if(is.null(names(cont_raw[[1]][[r]][[c]])))
          {
            cont_raw[[1]][[r]][[c]] = cont_raw[[1]][[r]][[c]][[1]]
          }
          if(!names(cont_raw[[1]][[r]][[c]])[i] %in% colNames)
          {
            colNames = c(colNames, names(cont_raw[[1]][[r]][[c]])[i])
            m = cbind(m, rep(NA,length(cont_raw[[1]]))) # aggiunta della colonna
            colnames(m) = colNames
          }
        }
        # inserisco i dati della sottolista
        for(k in 1:length(cont_raw[[1]][[r]][[c]]))
          m[r,names(cont_raw[[1]][[r]][[c]])[k]] = cont_raw[[1]][[r]][[c]][[k]]
      }else{
        tryCatch(
          {
            m[r,names(cont_raw[[1]][[r]][c])] =
              ifelse(length(cont_raw[[1]][[r]][[c]][[1]])>1,
                     cont_raw[[1]][[r]][[c]][[1]][[1]],
                     cont_raw[[1]][[r]][[c]][[1]])
          },
          error = function(e) print(paste(z, r, c, e)))
      }
    }
  }
  d = m %>% data.frame() %>% tibble()

  # debug
  print(c(data %>% dim))

  # merge database
  if(z == 1)
  {
    data = d
  }else
  {
    data[setdiff(names(d), names(data))] <- NA
    d[setdiff(names(d), names(data))] <- NA
    data = bind_rows(data, d)
  }

  Sys.sleep(1.1)

}

saveRDS(data, "data/data_TS_24_12")

In order to avoid making further requests to the site, previously collected data are retrieved and the previous code is not executed.

data = readRDS(file = "data/data_TS_24_12")
data |>
  # reorder columns
  select(
    propertyType,
    district,
    price,
    priceByArea,
    size,
    rooms,
    bathrooms,
    floor,
    priceInfo,
    newDevelopment,
    parkingSpace,
    parkingSpacePrice,
    province,
    municipality,
    country,
    operation,
    latitude,
    longitude,
    status,
    detailedType,
    numPhotos
  ) |>
  slice_sample(n = 30)

Clean Data

Easy and fast cleaning.

# data.frame(1:dim(data)[2],data %>% names)
# str(data)
# pulizia dei dati
data$floor[data$floor == "bj"] = 0

# indexNumeric = c(1,4,5,6,9,11,12,18,19,20,23,29,30,43)

data %>%
  mutate_at(
    vars(
    price,
    priceByArea,
    parkingSpacePrice,
    floor,
    priceInfo,
    size,
    rooms,
    bathrooms,
    numPhotos,
    parkingSpace,
    latitude,
    longitude,
  ),
  as.numeric
  ) |>
  mutate_at(
    vars(
      propertyType,
      operation,
      province,
      municipality,
      district,
      country,
      status,
      newDevelopment,
      detailedType,
      highlight,
      typology,
      subTypology,
    ),
    as.factor
  ) |>
  mutate_at(
    vars(
      hasLift,
      hasPlan,
      has3DTour,
      has360,
      hasStaging,
      hasVideo,
      showAddress,
      newDevelopmentFinished,
      topNewDevelopment,
      topPlus,
      hasParkingSpace,
      isParkingSpaceIncludedInPrice,

    ),
    as.logical,
  ) |>
  mutate(
    across(district, \(x) str_replace_all(x, "-", " - ")),
    city_area = if_else(is.na(neighborhood), district, neighborhood),
    label = paste0(
      "Title: ", title, "\n",
      "District: ", city_area, "\n",
      "Floor: ", floor, "\n",
      "Size: ", size, " m^2\n",
      "Price: ", dollar(price, prefix = "€", suffix = "k", scale = .001), "\n",
      "Price for m^2: ", dollar(priceByArea, prefix = "€"), "\n",
      "Property type: ", propertyType, "\n",
      "Rooms: ", rooms, "\n",
      "Bathrooms: ", bathrooms, "\n",
      "Status: ", status, "\n"
    ),
  ) -> data

Warning: There was 1 warning in `mutate()`.
ℹ In argument: `floor = .Primitive("as.double")(floor)`.
Caused by warning:
! NA introdotti per coercizione

Exploratory data analysis

In this section, some plots are shown to give an idea of the data.

Plots

data |>
  filter(!is.na(floor)) |>
  mutate(
    across(city_area, \(x) fct_na_value_to_level(x, "NA") |> fct_lump_n(5))
  ) |>
  summarise(
    n = n(),
    across(
      priceByArea,
      list(max = max, min = min, mean = mean),
      .names =  "{.col}_{.fn}"
      ),
    .by = c(floor, city_area)
  ) |>
  # transform n to a range between min and max of priceByArea
  mutate(
    across(
      n,
      \(x) qunif(
        (x - min(x))/(max(x) - min(x)),
        priceByArea_min,
        priceByArea_max
        )
      ),
    .by = city_area
  ) |>
ggplot(aes(x = floor)) +
  # just to have pricebyarea in the y axis
  geom_line(
    aes(y = priceByArea_mean),
    alpha = 0,
    ) +
  # geom_ribbon(
  #   aes(ymin = priceByArea_min, ymax = priceByArea_max),
  #   fill = "tomato",
  #   alpha = .3
  #   ) +
  geom_col(
    aes(y = n),
    alpha = .7,
    fill = "steelblue",
    ) +
  geom_line(
    aes(y = priceByArea_mean),
    color = "tomato",
    ) +
  geom_ribbon(
    aes(ymin = priceByArea_min, ymax = priceByArea_max),
    fill = "tomato",
    alpha = .3
    ) +
  facet_wrap(
    ~city_area,
    ncol = 3,
    scales = "free",
    labeller = label_wrap_gen()
    ) +
  scale_y_continuous(
    name = "Price for m^2",
    labels = ~ dollar(.x, prefix = "€"),
    # limits = ~ list(0, max(.) * 1.1),
    # sec.axis = sec_axis(trans = ~ . / max(.y), name = "Price")
  ) +
  scale_x_continuous(
    labels = ~number(., accuracy = 1)
  ) +
  labs(
    y = "",

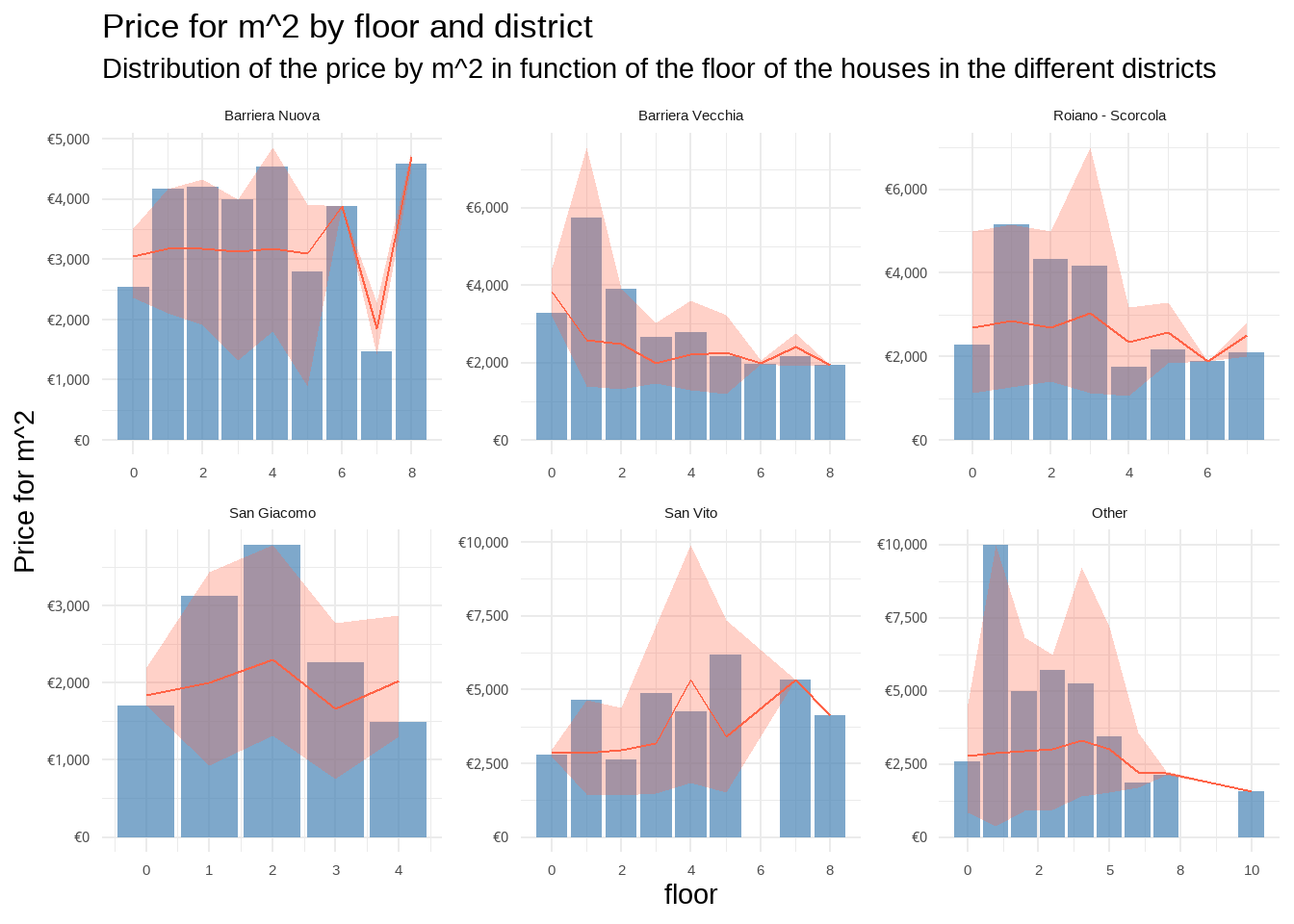

    title = "Price for m^2 by floor and district",
    subtitle = "Distribution of the price by m^2 in function of the floor of the houses in the different districts",

  ) +
  theme_minimal()

p = data |>
  filter(!is.na(floor), !is.na(size)) |>
  mutate(
    across(city_area, \(x) fct_na_value_to_level(x, "NA") |> fct_lump_n(8))
  ) |>
  ggplot(aes(x = size, y = price, color = city_area,
             group = city_area, text = label)) +
  geom_point(
    alpha = .7,
    size = 1,
  ) +
  geom_smooth(
    alpha = .9,
    se = F,
    linewidth = .5,
    linetype = "dashed",
  ) +
  scale_y_log10(
    labels = \(x) dollar(x, prefix = "€", suffix = "k",
                         scale = .001, accuracy = 1)
  ) +
  scale_x_continuous(
    limits = c(15,200),
    ) +
  # scale_x_log10() +
  theme(
    legend.position = "bottom",
    legend.title = element_blank(),
  ) +
  theme_minimal() +
  guides(
    color = guide_legend(nrow = 2)
  ) +
  labs(
    x = "Size (m^2)",
    y = "Price",
    title = "Price of the houses in relation to the size",
    color = "District"
  )

# interact the plot
ggplotly(p, tooltip = "text") |>
  plotly::layout(
    width = 800,
    height = 750,
    legend = list(
      orientation = "h",
      x = 0.5,
      xanchor = "center",
      y = -0.2
    )
  )

Maps

Mappa del prezzo delle case nelle diverse zone della città. La mappa è interattiva, cliccando sui singoli pallini comparirà una box con ulteriori dati sulla casa.

pal = with(data, colorFactor(brewer.pal(10,"RdYlGn"), -priceByArea))
dfPopup = data %>%
  mutate(popup_info = str_replace_all(label, "\n", "<br>"))
leaflet() %>%
  addTiles() %>%
  addCircleMarkers(data = dfPopup,
                   lat = ~ latitude,
                   lng = ~ longitude,
                   radius = ~ 2,
                   opacity = .7,
                   color = ~ pal(-priceByArea),
                   popup = ~ popup_info)

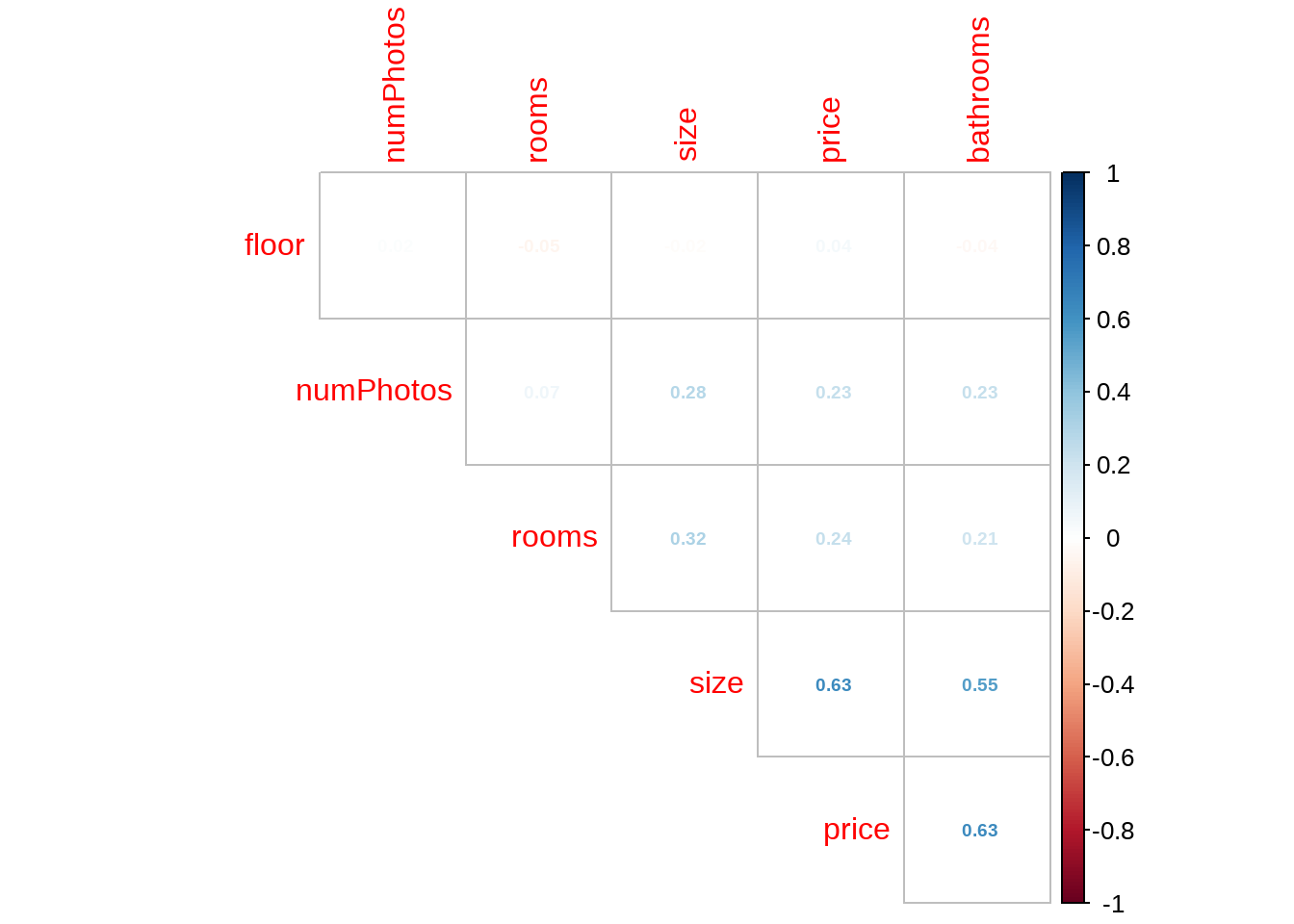

Correlation plot

data %>%
  select_if(is.numeric) %>%
  dplyr::select(
    price,
    size,
    numPhotos,
    floor,
    rooms,
    bathrooms,
    ) %>%
  na.roughfix() %>%
  cor %>%
  corrplot::corrplot(method = "number",
                     hclust.method = "ward.D2",
                     diag = F,
                     type = "upper",
                     order = "hclust",
                     number.cex = .6)

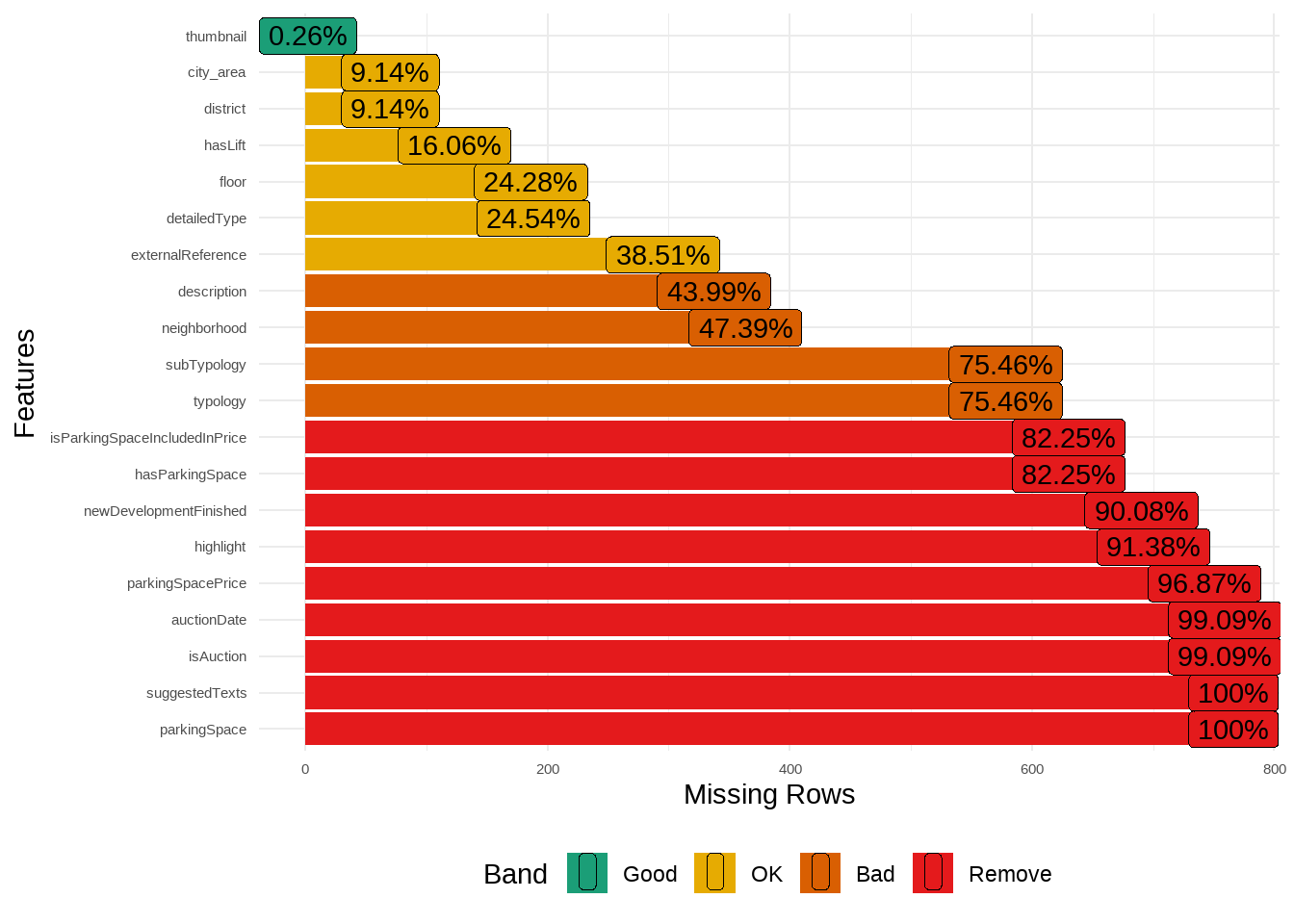

Missing data

Visualize the features with NA and from that understand how to manipulate them.

DataExplorer::plot_missing(data, missing_only = T, ggtheme = theme_minimal())

data |>
  select(
    # select only columns with less than 80% of NAs
    data |>
      summarise(
        across(everything(), \(x) sum(is.na(x)) / nrow(data))
      ) |>
      pivot_longer(everything()) |>
      filter(value < .8) |>
      pull(name)
  ) -> data

Model

Pre processing

I develop an easy model to figure out how the variables for an ad influence the price posted on. I will use the {tidymodels} framework to deal it. The dataset will be splitted into 2 dataset, one for training and one for testing.

set.seed(1)
# data |> glimpse()
data_split = initial_split(data, prop = .8, strata = city_area)

data_train = training(data_split)
data_test = testing(data_split)

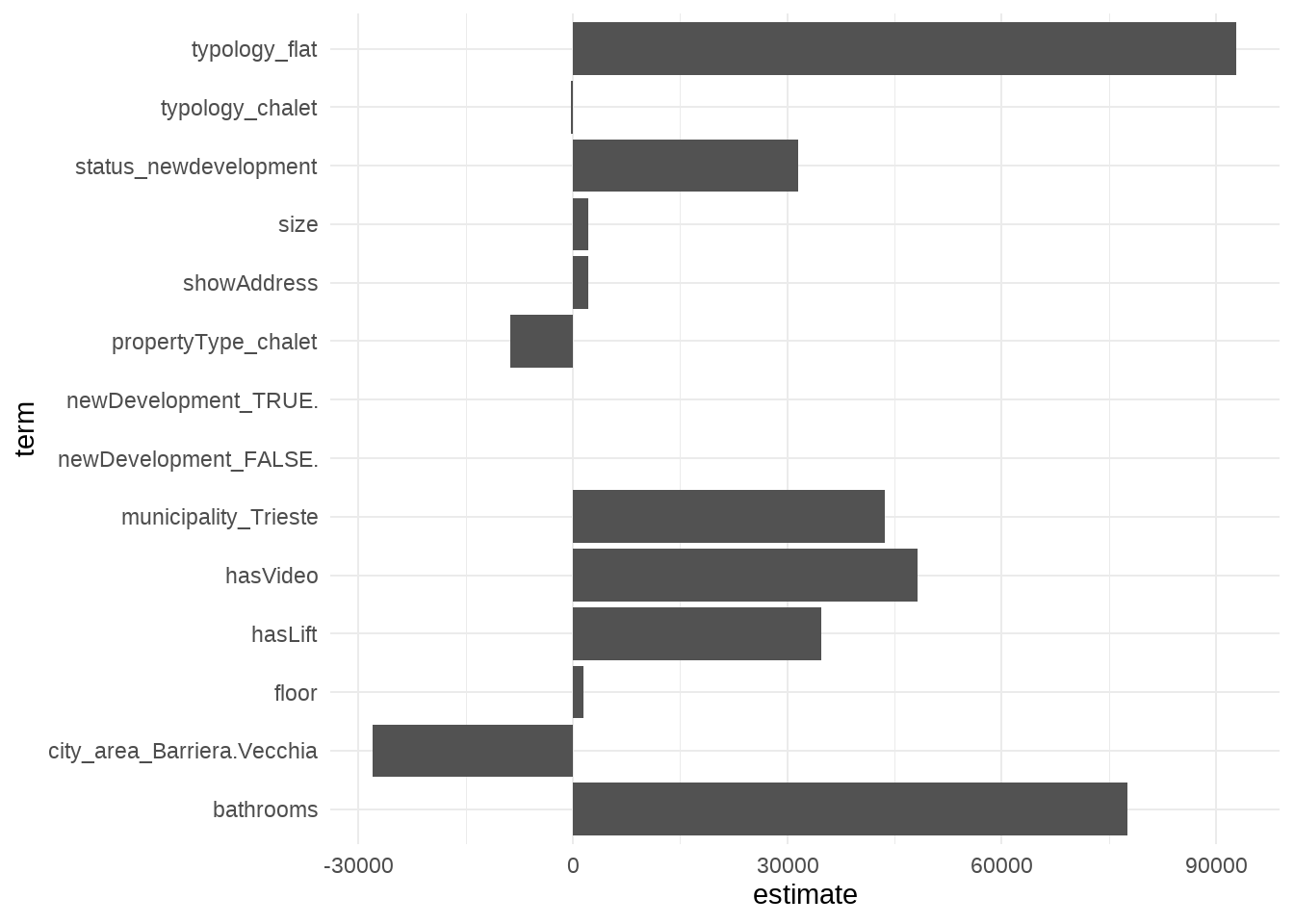

I use a penalized linear regression via {glmnet} package. I create a grid of parameters for penalty and mixture and I’ll train a model for each combination of parameters. After that I’ll estimate the metrics of the models and I’ll choice the best one based on RMSE (Root Mean Square Error).

# set the model
mod <- linear_reg(
  penalty = tune(),
  mixture = tune()
  ) |>
  set_engine("glmnet")

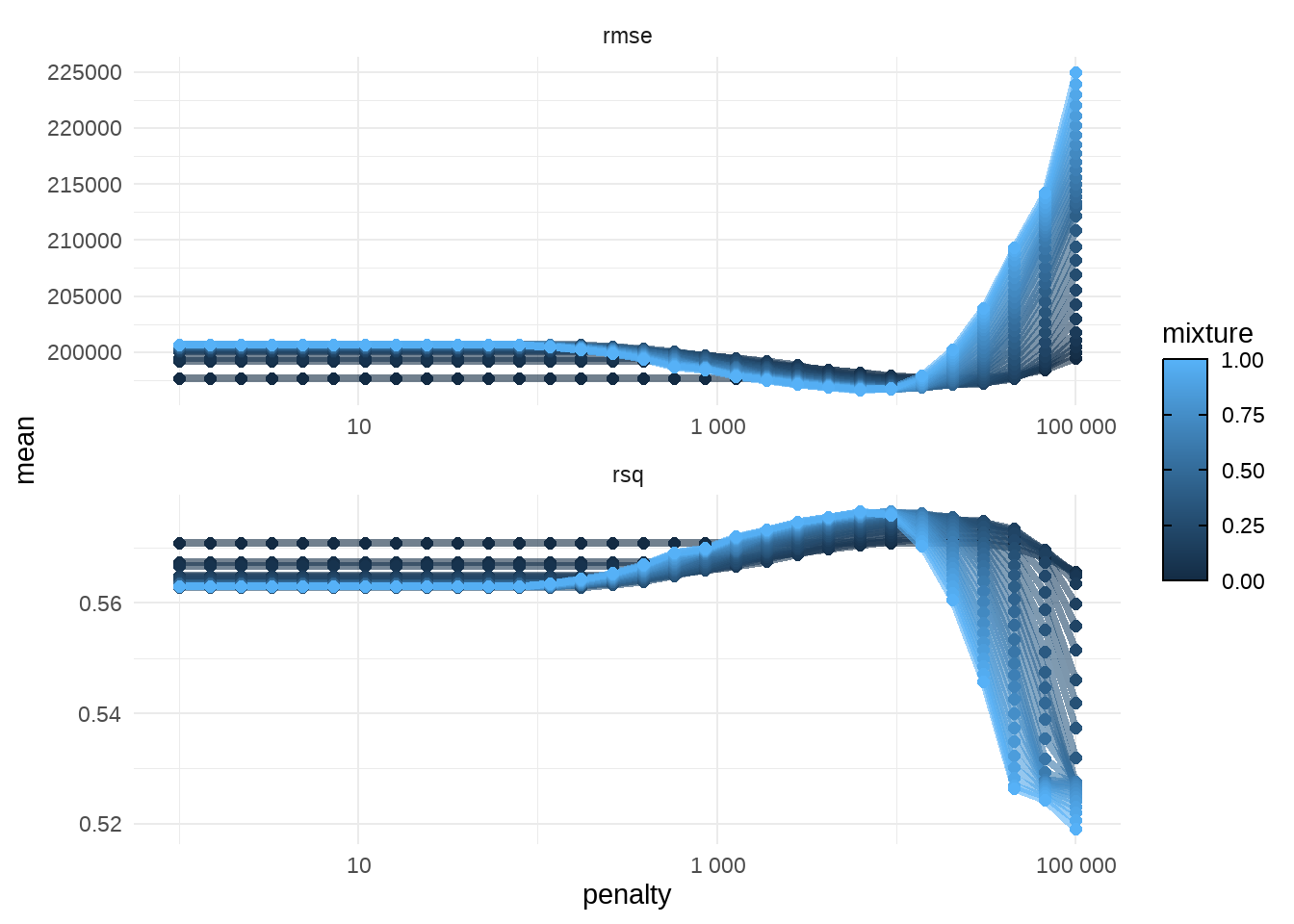

data_grid <- grid_regular(penalty(c(5, 0)),
                          mixture(c(0, 1)),
                          levels = 30)

# for the cross validation
set.seed(1)
data_folds <- vfold_cv(data_train, v = 10)

In the recipe, there is the formula and the pre process rules. I remove all columns with low variance and group less common levels of the factor variables. For the nominal predictors who are NA I assign the unknown category while for numeric ones I impute the median of the category.

# set the recipe
rec <- recipe(price ~ ., data = data) |>
  # these items won't be bake. They could be useful for the future analysis
  update_role(propertyCode, latitude, longitude, url, description, priceByArea,
           title, label, new_role = "ID") |>
  # remove unuseful features
  step_rm(thumbnail, priceInfo, distance, externalReference, subtitle,
          neighborhood, district) |>
  # logical to factor
  step_mutate_at(all_logical_predictors(), fn = ~ as.numeric(.)) |>
  # remove zero variance predictors
  step_zv(all_predictors()) |>
  # remove features almost equals
  step_nzv(all_predictors(), freq_cut = 95/5) |>
  # for some levels who aren't present in training set but in testing set
  step_novel(all_nominal_predictors()) |>
  # add unknown to missing values
  step_unknown(all_nominal_predictors()) |>
  # group unfrequent classes to "other"
  step_other(all_factor_predictors(), threshold = .1) |>
  # fill NAs who didn't manage them before
  step_impute_median(all_numeric_predictors()) |>
  # NA omit
  # step_naomit(all_predictors()) |>
  # step_dummy(all_logical_predictors(), one_hot = T) |>
  step_dummy(all_nominal_predictors(), one_hot = T)
  # reduce multicollinearity
  # step_corr(all_predictors(), threshold = .9, )

workflow() |>
  add_model(mod) |>
  add_recipe(rec) -> wkflw

# prep(rec, training = data_train) |>
#   bake(new_data = NULL)

prep(rec, log_changes = T)

step_rm (rm_Hc7ab):
 removed (7): thumbnail, priceInfo, district, neighborhood, distance, ...

step_mutate_at (mutate_at_PL71w): same number of columns

step_zv (zv_OQv4A):
 removed (5): operation, province, country, topNewDevelopment, topPlus

step_nzv (nzv_ibiO2):
 removed (4): detailedType, has3DTour, has360, hasStaging

step_novel (novel_1EelD): same number of columns

step_unknown (unknown_lyXyh): same number of columns

step_other (other_V6alB): same number of columns

step_impute_median (impute_median_RlDvT): same number of columns

step_dummy (dummy_ZE3pu):
 new (24): propertyType_chalet, propertyType_flat, propertyType_other, ...
 removed (8): propertyType, address, municipality, status, ...

── Recipe ──────────────────────────────────────────────────────────────────────

── Inputs

Number of variables by role

outcome:    1
predictor: 33
ID:         8

── Training information

Training data contained 766 data points and 766 incomplete rows.

── Operations

• Variables removed: thumbnail, priceInfo, distance, ... | Trained

• Variable mutation for: showAddress, hasVideo, hasPlan, ... | Trained

• Zero variance filter removed: operation, province, country, ... | Trained

• Sparse, unbalanced variable filter removed: detailedType, ... | Trained

• Novel factor level assignment for: propertyType and address, ... | Trained

• Unknown factor level assignment for: propertyType and address, ... | Trained

• Collapsing factor levels for: propertyType and address, ... | Trained

• Median imputation for: numPhotos, size, rooms, bathrooms, ... | Trained

• Dummy variables from: propertyType, address, municipality, ... | Trained

Tuning

In the plots below there are the model metrics along different parameters (penalty and mixture).

# Detect the number of cores and store in variable
cores <- detectCores() -1
cl <- makeCluster(cores)
registerDoParallel(cl)

pen_reg_res <-
  wkflw %>%
  tune_grid(
    resamples =  data_folds,
    grid = data_grid
    )

stopCluster(cl)

pen_reg_res |>
  collect_metrics() |>
  ggplot(aes(mixture, mean, color = penalty, group = penalty)) +
  geom_line(size = 1.5, alpha = 0.6) +
  geom_point(size = 2) +
  facet_wrap(~ .metric, scales = "free", nrow = 2)

Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

pen_reg_res |>
  collect_metrics() |>
  ggplot(aes(penalty, mean, color = mixture, group = mixture)) +
  geom_line(size = 1.5, alpha = 0.6) +
  geom_point(size = 2) +
  facet_wrap(~ .metric, scales = "free", nrow = 2) +
  scale_x_log10(labels = scales::label_number())

I’ll choise the best model based on RMSE and finalize the workflow.

best_mod <- pen_reg_res |>
  select_best(metric = "rmse")

final_wf <- finalize_workflow(wkflw, best_mod)
final_wf

══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: linear_reg()

── Preprocessor ────────────────────────────────────────────────────────────────
9 Recipe Steps

• step_rm()
• step_mutate_at()
• step_zv()
• step_nzv()
• step_novel()
• step_unknown()
• step_other()
• step_impute_median()
• step_dummy()

── Model ───────────────────────────────────────────────────────────────────────
Linear Regression Model Specification (regression)

Main Arguments:
  penalty = 6210.16941891562
  mixture = 1

Computational engine: glmnet

Final model

The final model has a RMSE of €31.850 and an \(R^2\) of 0.21.

final_fitted <- last_fit(final_wf, split = data_split)

final_fitted |>
  collect_metrics()

I assume that the model could estimate the real price, so in the table below are shown the price published with the delta from the price predicted. This is useful to check when an house is over or under estimated. The model doesn’t take in account the whole parameters which an house agency should take, so that this model is just to give a first prediction of the house price.

predictions <- final_fitted |>
  collect_predictions() |>
  select(row = .row, price, predicted = .pred) |>
  mutate(
    delta = price - predicted,
    delta_percent = scales::percent(delta / predicted, accuracy = .1)
  )
predictions

plot <-
  predictions |>
  left_join(
    data |> mutate(row = 1:nrow(data)),
    by = c("row", "price")
  ) |>
  # TODO: update label
  ggplot(aes(price, predicted, text = label)) +
  geom_point(aes(color = rank(-delta))) +
  geom_abline(intercept = 0, slope = 1) +
  # geom_text(aes(x = predictions$price[predictions$predicted>1E6],
  #               y = predictions$predicted[predictions$predicted>1E6]),
  #           label = "99 Rooms",
  #           nudge_x = .2,
  #           color = "tomato"
  #           ) +
  scale_x_log10(label = \(x) scales::dollar(x, prefix = "€", big.mark = ".")) +
  scale_y_log10(label = \(x) scales::dollar(x, prefix = "€", big.mark = ".")) +
  scale_color_continuous(low = "tomato", high = "skyblue4") +
  labs(
    x = "Price posted on Idealista",
    y = "Price predicted",
    title = "Prediction VS Posted"
  )
ggplotly(plot, tooltip = c("text", "x", "y"))

final <- fit(final_wf, data = data_train)

final |>
  tidy() |>
  filter(abs(estimate) < 1E5, abs(estimate) > 1E1) |>
  ggplot(aes(estimate, term)) +
  geom_col()
